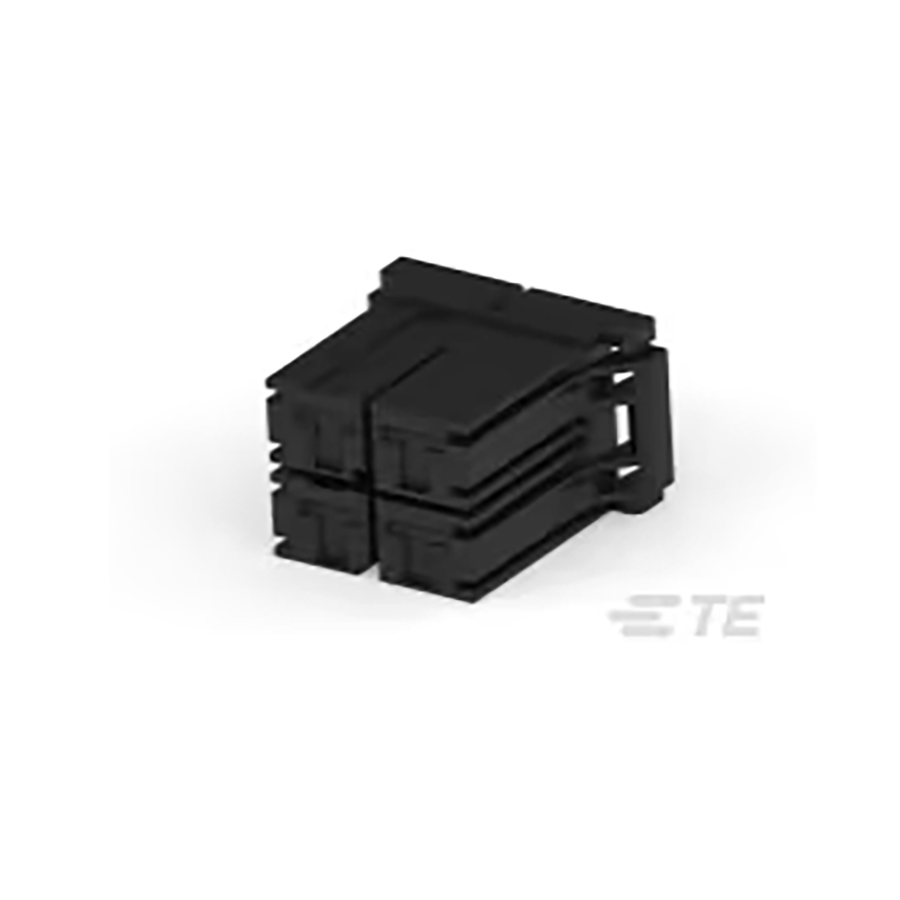

1-917807-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1-917807-2
Datasheet:
Description:
Headers and Wire Housings Cable, Free Hanging Receptacle, Socket Number of Positions:4 Pitch:10.16 mm
| Parameter | Value |
|---|---|
| Length | 33.36 mm |
| Width | 19.96 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Height | 29 mm |
| Packaging | Bulk |
| Depth | 29 mm |
| Halogen Free | Halogen Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Pitch | 10.16 mm |
| Flammability Rating | UL94 V-0 |
| Approvals | UL |
| Orientation | Straight |
| Operating Supply Voltage | 630 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Receptacle |
| Number of Contacts | 4 |
| ELV | Compliant |
| Connector Type | Receptacle, Socket |
| Wire/Cable Gauge | 16 AWG |
| Number of Positions | 4 |
| Number of Rows | 2 |
| Row Spacing | 10.1346 mm |
| Housing Material | Polyester |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Max Voltage Rating (AC) | 630 V |
| Wire Gauge (Max) | 16 AWG |
| Wire Gauge (Min) | 10 AWG |
| Housing Color | Black |
| VDE Tested | No |
| Preloaded | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
Stock: 111
Distributors
pcbx
pcbxUnit Price$1.18474
Ext.Price$1.18474
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.18474 | $1.18474 |
| 10 | $1.00378 | $10.03780 |
| 25 | $0.94322 | $23.58050 |
| 50 | $0.88631 | $44.31550 |
| 100 | $0.83284 | $83.28400 |
| 300 | $0.79655 | $238.96500 |
| 500 | $0.76184 | $380.92000 |
| 1000 | $0.73313 | $733.13000 |
